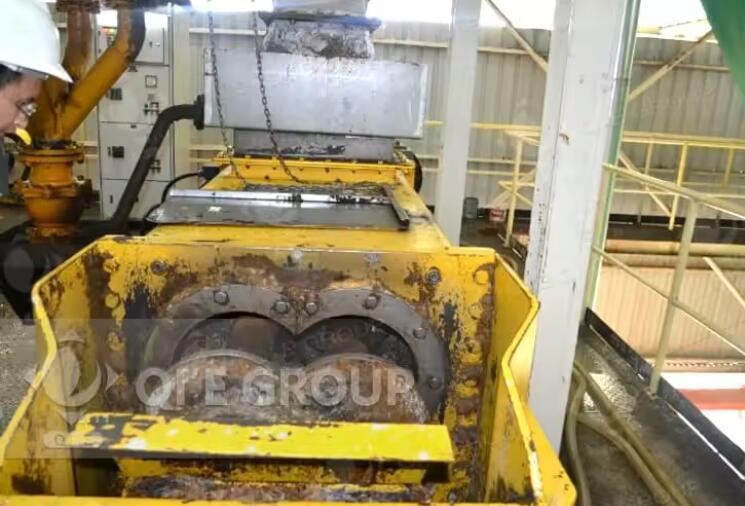

Double screw palm oil press machines usually used in large, medium and small scale palm oil mill for oil extraction with fresh palm fruits. The most common processing capacity is 3tph, 5tph, 15tph. As for the special processing capacity, we can customize it for you.

Model	QIE15T/C(SG)
Type:	Horizontal Double Worm Screw
Capacity	15 tons FFB/hour
Operating Speed	Approx. 10.5 rpm
Motor	30 kW, 4 Poles, IP 55, class F, 1450 rpm, 380-415V, 3 phase, 50Hz, TEFC squirrel cage motor
Gear reducer	SEW M3PSF50SPD, Power rating = 60kW, nominal torque rating = 45,000Nm
Service Factor	Minimum 1.5
Pulley & Belt	4 SPB with taper lock bushes.
Hydraulic	Rexroth automatic cone control system RRCS-2D-15



Product Details

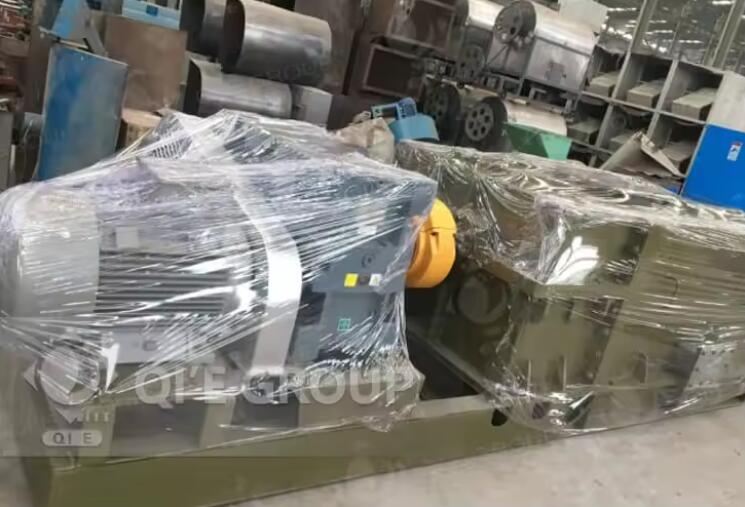

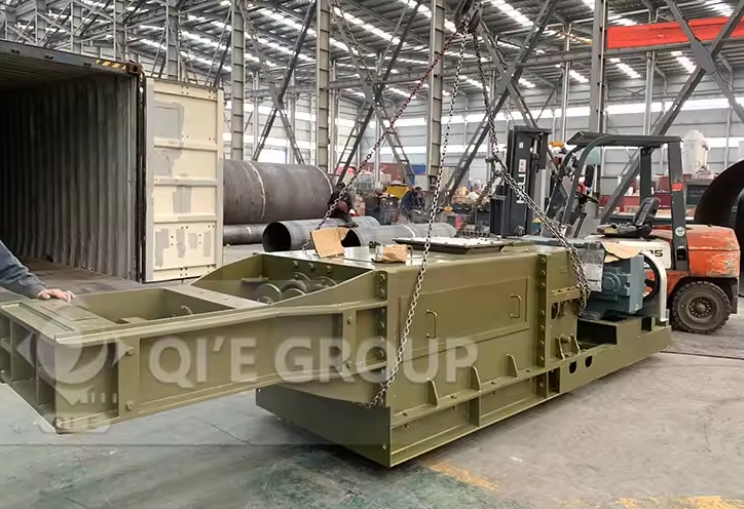

Packing & Delivery

Any special requirement of shipping, please talk with us, we will make sure the goods arrive safely on time.
If the amount of goods to be deliverd is relatitively small ,the goods will be packaged in the form of export wooden boxes .if the goods are shipped in the large quantities,the goods will be directly loaded into the containers and cut and reinforced to prevent the goods from colliding.
